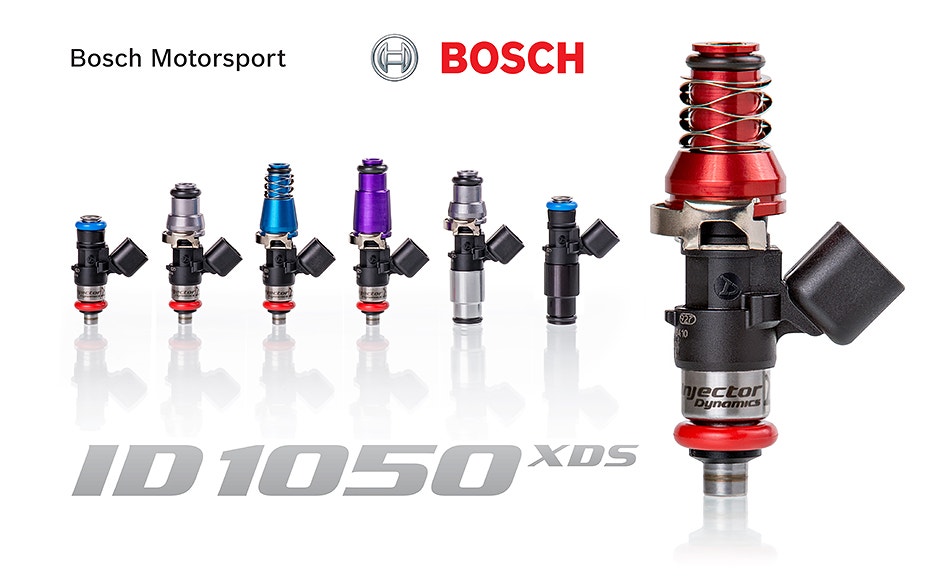

Injector Dynamics ID1050-XDS Fuel Injectors for 2011-2023 Mustang GT with Factory Intake

Part Number
PBD-INJ-1050XDS-1123GTF

ID1050-XDS for 2011+ Ford Mustang GT 5.0L Coyote applications with factory style intake. 14 mm (grey) adaptor top AND (silver) BOTTOM adaptor.  Direct plug-in. Set of 8.

More details

ID1050-XDS for 2011+ Ford Mustang GT 5.0L Coyote applications with factory style intake. 14 mm (grey) adaptor top AND (silver) BOTTOM adaptor.  Direct plug-in. Set of 8.

Grouped product items
Product Name
Injector Dynamics ID1050-XDS 60mm length -14 mm top adaptor AND 14mm bottom adaptor. Direct plug-in. Set of 8.
$1,134.00

The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.
Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.


  • Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
  • Improved internal flow path increases output by 5% without sacrificing low flow performance.
  • Stronger magnetic circuit offers stable operation up to 10 bar.
  • Replaceable inlet filter extends service life.


The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result

More Information
Nominal Flow Rate1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Fuel CompatibilityAll, Gasoline, Ethanol, Methanol, MTBE, ETBE, TAME, Nitro Methane
Injector Bore Size14mm
Injector Length60mm
Maximum Differential Fuel Pressure10.0 Bar (145.0 psi)
MakeFord
ModelMustang GT
Year2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011
